How to Source Custom Rotomolded Agricultural Water Tanks: A B2B OEM Procurement Guide

A rotomolded agricultural tank is a single-piece polyethylene vessel formed by heating and rotating a mold around two axes, allowing resin to coat the interior evenly and cure into a stress-free, uniform wall.

Because there are no seams, welds, or mechanical joints in the tank body, the structure behaves as one continuous material. That characteristic is what separates rotomolded tanks from fabricated alternatives in farm environments where vibration, thermal cycling, and impact are constant.

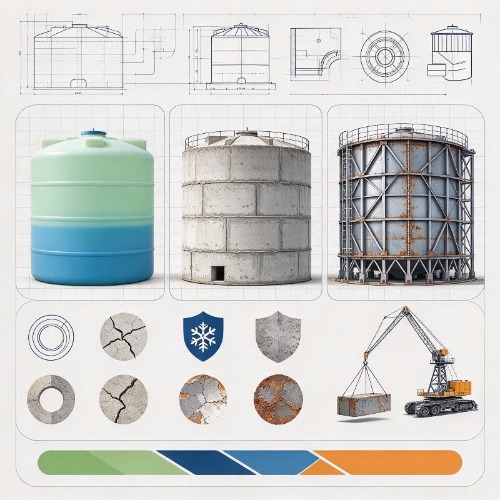

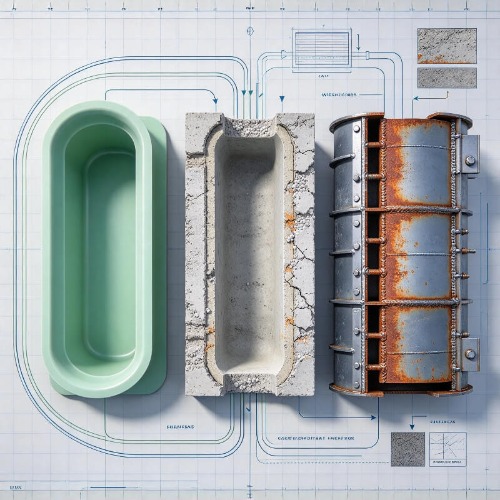

Rotomolded PE vs. Alternative Tank Materials

Getting these decisions right at the drawing stage avoids expensive mold changes later and prevents field problems after installation.

1. Footprint Fitting and Access Planning

Farm sites are rarely level or open. Tanks often sit beside a pump shed, under a lean-to, or between existing concrete pads. Rotomolding supports stepped bases, offset outlet bosses, and integrated lifting lugs so the tank fits the site as drawn—not the other way around.

2. Surge Control and Wall Stiffening

A half-full tank on a moving trailer behaves very differently from a stationary one. Internal baffles divide the liquid volume and reduce surge; external ribs add rigidity so the walls resist bowing, vacuum collapse during drainage, and deformation under full load.

3. Fittings, Ports, and Level Monitoring

Long-term leak points usually appear at connections, not in the tank body. Specify:

• Molded-In Metal Inserts: For mounting brackets, agitators, or heavy fittings that see repeated load.
• Spin-Welded Threaded Ports: Molecularly fused inlet, outlet, drain, and vent connections that hold tight through vibration and temperature swings.
• Sensor Bosses: Pre-formed mounting points for float switches, pressure sensors, or sight gauges.

4. Resin Selection for Water Quality and Climate

• Drinking Water and Livestock Use: Specify virgin LLDPE certified to FDA 21 CFR 177.1520 and NSF/ANSI 61. Recycled or blended resins can leach odor and taste compounds.
• High-UV Regions: Require UV-8 or higher stabilization. Without it, polyethylene embrittles after several seasons of direct sun, especially in Australia, the Middle East, and southern Europe.

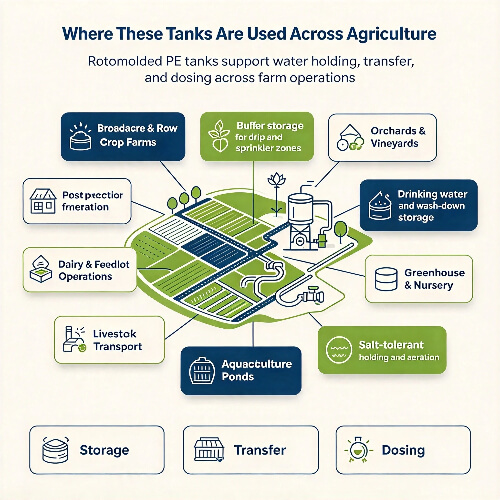

Where These Tanks Are Used Across Agriculture

 AGRICULTURAL OEM APPLICATION MAP:

Broadacre & Row Crop Farms → Buffer storage for drip and sprinkler zones

Orchards & Vineyards → Frost protection reservoirs and fertigation mixing

Dairy & Feedlot Operations → Drinking water supply and wash-down storage

Greenhouse & Nursery → Nutrient dosing tanks and misting supply

Livestock Transport → Portable water carts for field and market runs

Aquaculture Ponds → Salt-tolerant holding and aeration reservoirs

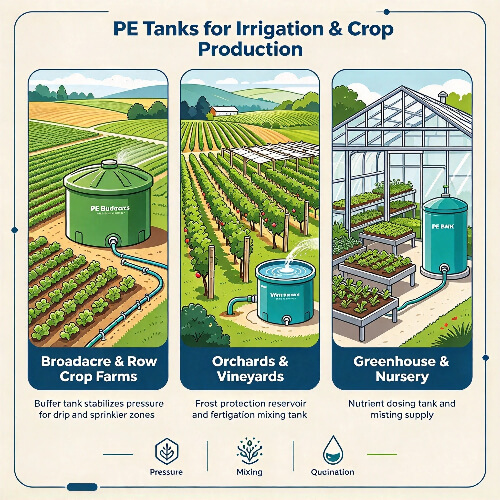

Broadacre & Row Crop Farms: Buffer tanks that stabilize pressure across drip and sprinkler zones, sized to match pump output and irrigation blocks.

Orchards & Vineyards: Frost protection reservoirs and fertigation mixing tanks built to fit between tree rows and trellis lines.

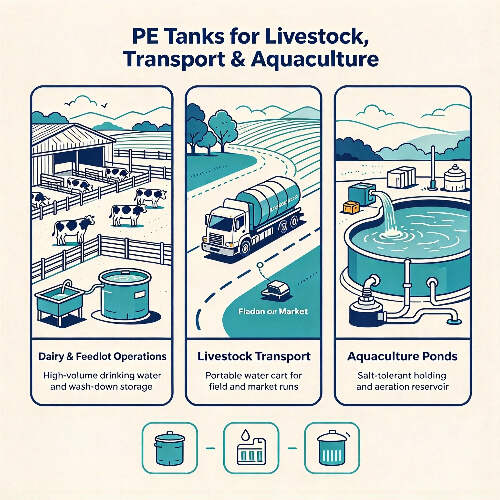

Dairy & Feedlot Operations: High-volume drinking water storage and wash-down tanks specified for continuous refill cycles.

Greenhouse & Nursery: Nutrient dosing and misting supply tanks with smooth interiors that resist algae and mineral scale.

•

•

•



How to Vet a Rotomolding Supplier Before Tooling

Tooling is a long-term commitment. The supplier's engineering discipline matters more than the price per unit on the first order.

1. Mold Fabrication Capability

 Aluminum molds—cast or CNC-machined—hold dimensional tolerance and surface quality far better than fabricated steel molds. Confirm the supplier can produce or source aluminum tooling and can work directly from your 3D files.

 2. Wall Thickness Consistency and Process Control

Complex corners are where wall thickness drifts. Ask how the supplier controls oven temperature, rotation speed, and cooling cycle—and whether they verify finished wall thickness with ultrasonic measurement rather than visual inspection alone.

 3. Leak and Load Verification Before Shipment

 Every tank should be tested, not sampled. Look for:

• Air Pressure Decay Testing: Tank submerged and pressurized to reveal pinholes and seam flaws.
• Static Load Testing: Tank filled to rated capacity to confirm wall stability and fitting integrity.
• Resin Documentation: Batch certificates, melt flow index data, and FDA/NSF compliance letters on request.

Why Work With Xiamen Mellow Rotomolding Co., Ltd.?

Xiamen Mellow Rotomolding Co., Ltd. is an OEM/ODM rotational molding manufacturer serving agricultural, marine, RV, and industrial clients worldwide, with engineering and tooling handled in-house.

Our B2B OEM Advantages:

• Engineering From Drawing to Production: 2D/3D CAD review, mold flow assessment, CNC aluminum tooling, and full-scale manufacturing under one roof.
• Certified Resin Supply: Virgin LLDPE and HDPE grades meeting FDA and REACH requirements for potable and agricultural contact.
• Fitting and Baffle Integration: Spin-welded ports, molded-in inserts, and custom baffle layouts matched to your plumbing and transport setup.
• Documented Quality Control: 100% pressure leak testing, ultrasonic wall checks, and load verification with traceable records.
• Scalable Ordering: Prototype tooling for pilot programs and repeat production for established agricultural OEM lines.

Talk to Our Engineering Team About Your Tank Requirements If you are specifying a new agricultural water tank or re-evaluating a current supplier, send us your drawings, capacity targets, and site constraints. Xiamen Mellow Rotomolding Co., Ltd. will respond with a manufacturable design and a clear production path.
